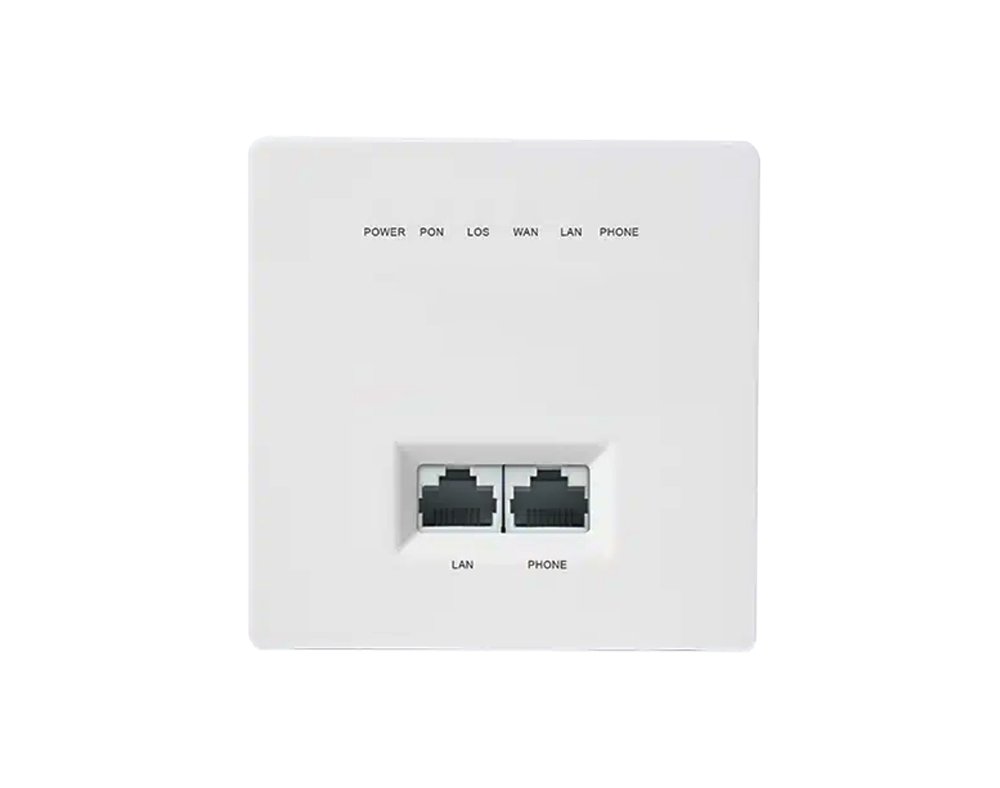

1GE+1POTS 86 Type xPON ONU
86-panel type 1GE + 1POTS XPON ONU with GPON/EPON dual-mode support. Designed for Fiber to the Room (FTTR) broadband access, providing high-bandwidth, low-latency all-optical services.
Category: xPON ONT/ONU
Key Features
- 86-panel type design – compact wall-mounted deployment.
- GPON/EPON dual-mode – auto-detection for seamless integration.
- IPv4/IPv6 dual stack – supports future-proof networking.
- VoIP support – 1 * FXS port for high-quality voice services.
- Comprehensive management – Web/TR069/OAM/OMCI.
Technical Specifications
| Parameter | Specification |
|---|---|
| PON Standard | GPON: ITU-T G.984.x / EPON: IEEE 802.3ah |
| Optical Interface | 1 * SC/APC or SC/UPC |
| PON Speed | GPON: Downstream 2.488 Gbps / Upstream 1.244 Gbps | EPON: Symmetric 1.25 Gbps |
| Transmission Distance | Up to 20 km |
| Wavelength | TX 1310 nm / RX 1490 nm |
| Data Port | 1 * GE (10/100/1000 Mbps) RJ45 |
| Telephone Port | 1 * FXS (RJ11) |
| VoIP Codec | G.711A/U, G.723, G.729 |
| Fax Support | T.30, T.38, G.711 Fax mode, DTMF Relay |
| VoIP Features | SIP/IMS-SIP, Caller ID, Call Waiting/Transfer |
| Multicast | IGMP v1/v2/v3 snooping/proxy |
| VLAN Support | VLAN tag, transparent, translation, QinQ |
| Layer 3 | IPv4/IPv6, PPPoE/Static IP/DHCP, NAT/NAPT |
| Security | Anti-DoS, MAC/IP/URL filtering |
| Management | WEB, Telnet, OAM, OMCI, TR069 |
| MAC Address Table | 2K |
| QoS | Strict Priority (SP), WRR, 802.1p |
| Power Consumption | ≤5 W |
| Power Supply | AC 100~240V / DC 12V 1A adapter |
| Dimension | 86 mm * 86 mm * 28 mm |
| Weight | 0.15 kg |
| Operating Temperature | -5°C to +50°C |
| Operating Humidity | 10% to 90% (non-condensing) |
Specifications and variant information reflect the published catalog. Confirm the exact model, optional features and compatibility with FOT before ordering.
Typical Applications
Ideal for FTTR (Fiber to the Room), modern smart homes, and high-end hotel room fiber access.
Related Products
- 4GE + 1POTS + WiFi6 xPON ONT
- 10GE+4GE XGS-PON ONU
- 10GE+1GE XG(S)-PON ONU
- 1*2.5GE + 3*GE + 1*POTS + WiFi6 XG(S)-PON ONU
Related Solutions & Guides
Equipment Buyer Questions
What is 1GE+1POTS 86 Type xPON ONU used for?
Ideal for FTTR (Fiber to the Room), modern smart homes, and high-end hotel room fiber access.
Which specifications should I check for 1GE+1POTS 86 Type xPON ONU?
The listed specifications include PON Standard: GPON: ITU-T G.984.x / EPON: IEEE 802.3ah; Optical Interface: 1 * SC/APC or SC/UPC; PON Speed: GPON: Downstream 2.488 Gbps / Upstream 1.244 Gbps | EPON: Symmetric 1.25 Gbps; Transmission Distance: Up to 20 km. Review the complete table and confirm your required configuration with FOT.
Is compatibility with my existing network guaranteed?
Compatibility depends on your existing equipment, firmware, interfaces and service configuration. Share your OLT/ONT or network equipment models with FOT for confirmation before deployment.
How can I request a quote for 1GE+1POTS 86 Type xPON ONU?
Email sales@fiberoptictel.com with the product name, quantity and required configuration. Ask for confirmation of pricing, availability and lead time.
