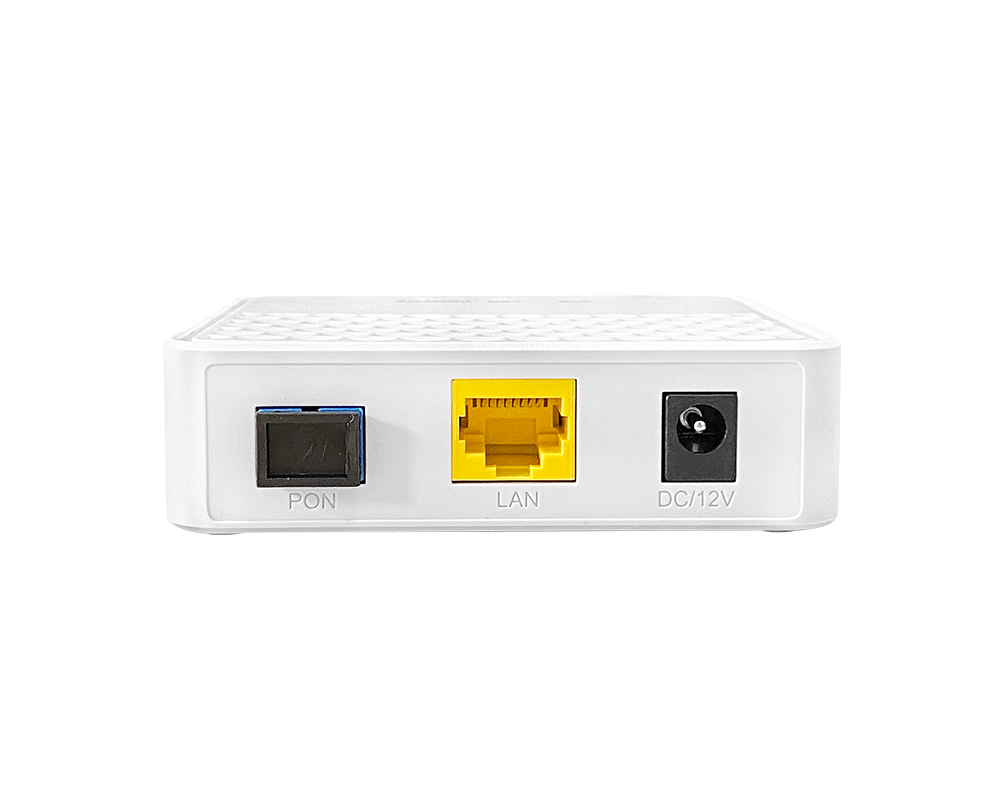

1GE POF POE xPON ONU
1GE XPON ONU with PoF (Power over Fiber) optical interface and optional PoE output. Solves inconvenient power supply issues, ideal for FTTH deployments in remote or power-constrained environments.
Category: xPON ONT/ONU
Key Features
- PoF optical interface – photoelectric composite fiber powers the ONU, eliminating the need for local power.
- PoE optional – provides 48VDC output to power terminal devices via twisted pair.
- XPON dual-mode – GPON/EPON auto-adaptive, compatible with mainstream OLT.
- Compact size – 86mm * 85mm * 25mm, easy to install in tight spaces.
- Flexible power input – supports DC 5–12V adapter or PoF power supply.
Technical Specifications
| Parameter | Specification |
|---|---|
| PON Standard | GPON: ITU-T G.984.x / EPON: IEEE 802.3ah, CTC 3.0 |
| Optical Interface | 1 * XPON port, SC/UPC, Class B+ (GPON) / PX20+ (EPON) |
| PON Speed | GPON: Downstream 2.5 Gbps / Upstream 1.25 Gbps / EPON: Symmetric 1.25 Gbps |
| Transmission Distance | Up to 20 km |
| Wavelength | TX 1310 nm / RX 1490 nm |
| LAN Interface | 1 * GE (10/100/1000 Mbps) RJ45 |
| PoE Function | Optional, 48VDC output |
| PoF Function | Power supply range: DC 14–60V |
| VLAN Support | 4094 VLANs |
| Management | OAM, CLI, WEB, Telnet, OLT remote upgrade |
| Power Consumption | ≤6 W |
| Power Supply | DC 5–12V, 1A adapter or PoF |
| Dimension (LWH) | 86 mm * 85 mm * 25 mm |
| Weight | 0.1 kg |
| Operating Temperature | -5°C to +55°C |
| Operating Humidity | 10% to 90% (non-condensing) |
Specifications and variant information reflect the published catalog. Confirm the exact model, optional features and compatibility with FOT before ordering.
Typical Applications
Ideal for FTTH deployments in remote or power-constrained environments.
Related Products
- 4GE + 1POTS + WiFi6 xPON ONT
- 10GE+4GE XGS-PON ONU
- 10GE+1GE XG(S)-PON ONU
- 1*2.5GE + 3*GE + 1*POTS + WiFi6 XG(S)-PON ONU
Related Solutions & Guides
Equipment Buyer Questions
What is 1GE POF POE xPON ONU used for?
Ideal for FTTH deployments in remote or power-constrained environments.
Which specifications should I check for 1GE POF POE xPON ONU?
The listed specifications include PON Standard: GPON: ITU-T G.984.x / EPON: IEEE 802.3ah, CTC 3.0; Optical Interface: 1 * XPON port, SC/UPC, Class B+ (GPON) / PX20+ (EPON); PON Speed: GPON: Downstream 2.5 Gbps / Upstream 1.25 Gbps / EPON: Symmetric 1.25 Gbps; Transmission Distance: Up to 20 km. Review the complete table and confirm your required configuration with FOT.
Is compatibility with my existing network guaranteed?
Compatibility depends on your existing equipment, firmware, interfaces and service configuration. Share your OLT/ONT or network equipment models with FOT for confirmation before deployment.
How can I request a quote for 1GE POF POE xPON ONU?
Email sales@fiberoptictel.com with the product name, quantity and required configuration. Ask for confirmation of pricing, availability and lead time.
