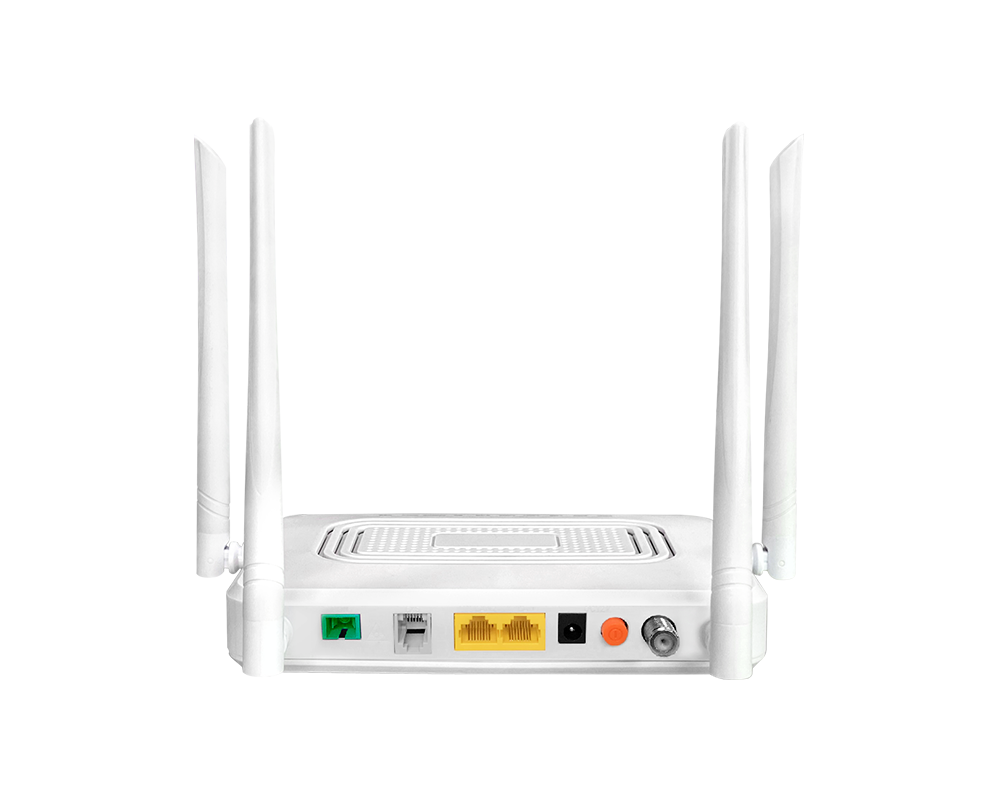

2GE+1POTS+CATV+WIFI5 xPON ONT
2GE+1POTS+CATV+WIFI5 xPON ONT is with GPON/EPON dual-mode. Triple-play solution integrating data, VoIP, and cable TV. Ideal for FTTH, FTTD, and multi-service broadband access.
Category: xPON ONT/ONU
Key Features
- GPON/EPON dual-mode – automatically detects OLT and switches PON mode.
- High-speed WiFi – 4T4R 2.4G/5G WiFi ac, speed up to 1.167Gbps.
- Built-in RF CATV module – supports 47–1000 MHz bandwidth with 76±2 dBμV output.
- VoIP support – 1 * FXS port with G.711/G.723/G.729 codec, T.30/T.38 fax.
- Comprehensive management – supports WEB, Telnet, CLI, OMCI/OAM.
Technical Specifications
| Parameter | Specification |
|---|---|
| PON Standard | GPON: ITU-T G.984.x / EPON: IEEE 802.3ah |
| Optical Interface | SC/PC connector, Class B+ (GPON) / PX20+ (EPON) |
| PON Speed | GPON: Downstream 2.5 Gbps / Upstream 1.25 Gbps / EPON: Symmetric 1.25 Gbps |
| Transmission Distance | Up to 20 km |
| Wavelength | TX 1310 nm / RX 1490 nm / CATV 1550 nm |
| Data Ports | 2 * GE (10/100/1000 Mbps) RJ45 |
| WiFi Standard | IEEE 802.11b/g/n/ac (2.4G/5G) |
| WiFi Speed | Up to 1.167 Gbps (4T4R MIMO, 5dBi antenna) |
| USB Interface | 1 * USB 3.0 |
| Telephone Port | 1 * FXS (RJ11) |
| VoIP Codec | G.711A/G.711U, G.723, G.729 |
| Fax Support | T.30, T.38, G.711 Fax mode, DTMF Relay |
| CATV Bandwidth | 47–1000 MHz |
| CATV Output Level | 76 ± 2 dBμV (@ -15~0 dBm) |
| CATV Optical Connector | SC/APC |
| Management | WEB, Telnet, CLI, OMCI/OAM |
| Power Consumption | ≤12 W |
| Power Supply | DC 12V, 1.5A adapter |
| Dimension (LWH) | 242 mm * 154 mm * 35 mm |
| Weight | 0.32 kg |
| Operating Temperature | -5°C to +55°C |
| Operating Humidity | 10% to 90% (non-condensing) |
Specifications and variant information reflect the published catalog. Confirm the exact model, optional features and compatibility with FOT before ordering.
Typical Applications
Ideal for FTTH, FTTD, and multi-service broadband access.
Related Products
- 4GE + 1POTS + WiFi6 xPON ONT
- 10GE+4GE XGS-PON ONU
- 10GE+1GE XG(S)-PON ONU
- 1*2.5GE + 3*GE + 1*POTS + WiFi6 XG(S)-PON ONU
Related Solutions & Guides
Equipment Buyer Questions
What is 2GE+1POTS+CATV+WIFI5 xPON ONT used for?
Ideal for FTTH, FTTD, and multi-service broadband access.
Which specifications should I check for 2GE+1POTS+CATV+WIFI5 xPON ONT?
The listed specifications include PON Standard: GPON: ITU-T G.984.x / EPON: IEEE 802.3ah; Optical Interface: SC/PC connector, Class B+ (GPON) / PX20+ (EPON); PON Speed: GPON: Downstream 2.5 Gbps / Upstream 1.25 Gbps / EPON: Symmetric 1.25 Gbps; Transmission Distance: Up to 20 km. Review the complete table and confirm your required configuration with FOT.
Is compatibility with my existing network guaranteed?
Compatibility depends on your existing equipment, firmware, interfaces and service configuration. Share your OLT/ONT or network equipment models with FOT for confirmation before deployment.
How can I request a quote for 2GE+1POTS+CATV+WIFI5 xPON ONT?
Email sales@fiberoptictel.com with the product name, quantity and required configuration. Ask for confirmation of pricing, availability and lead time.
