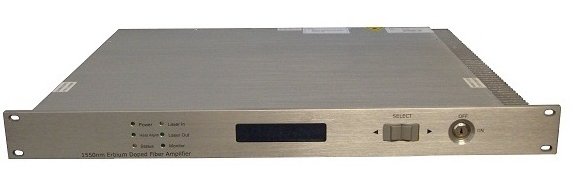

EDFA-1550S 1550nm Standard Erbium Doped Fiber Amplifier
1U rack-mountable 1550nm Erbium Doped Fiber Amplifier (EDFA) with 980nm/1480nm pump laser technology. Features low noise figure (<5.0 dB), high output power up to 27 dBm, and optional SNMP network management. Ideal for CATV, telecom, and long-distance fiber optic transmission systems.
Category: CATV Optical Equipment
Key Features
- High performance – optimized pump power distribution (980nm pre-stage, 1480nm post-stage) minimizes noise figure for superior CNR.
- Reliable design – built-in high-performance switching power supply with 85–265V AC or DC -48V optional; automatic temperature control and heat sink for pump laser protection.
- Intelligent monitoring – microprocessor monitors laser status with VFD/LCD display of operating parameters; automatic laser shutdown with alarm for parameter deviations.
- Flexible configuration – saturated output power from 13 dBm to 27 dBm, with 1 to 8 output ports (customizable).
- Network management – RJ45 interface for SNMP management (optional), compatible with SCTE HMS standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Wavelength | 1540–1560 nm |
| Optical Input Power | -10 to +10 dBm |
| Nominal Optical Input Power | 3 dBm |
| Working Pump Quantity | 1–3 |
| Saturated Output Power | 13–27 dBm |
| Number of Output Ports | 1–8 (customizable) |
| Noise Figure (NF) | <5.0 dB (@ +0 dBm input, 1550 nm) |
| Optical Output Power Stability | <±0.5 dB |
| Polarization Sensitivity | <0.2 dB |
| Polarization Dependence Gain | <0.5 dB |
| Polarization Mode Dispersion | <0.5 ps |
| Optical Connector (IN/OUT) | SC/APC, FC/APC, or customizable |
| SNMP Management Interface | RJ45 (optional) |
| Power Supply | 115–265V AC or DC -48V |
| Power Consumption | 50 W |
| Dimension (WDH) | 19" × 14.5" × 1.75" (482.6 mm × 368.3 mm × 44.45 mm) |
| Working Temperature | -5°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5% to 95% |
Listed Model Variants
| Model | Listed Optical Output |
|---|---|
| EDFA-1550S-13 | ≥20 mW |
| EDFA-1550S-14 | ≥25 mW |
| EDFA-1550S-15 | ≥32 mW |
| EDFA-1550S-16 | ≥40 mW |
| EDFA-1550S-17 | ≥50 mW |
| EDFA-1550S-18 | ≥63 mW |
| EDFA-1550S-19 | ≥80 mW |
| EDFA-1550S-20 | ≥100 mW |
| EDFA-1550S-21 | ≥125 mW |
| EDFA-1550S-22 | ≥160 mW |
| EDFA-1550S-23 | ≥200 mW |
| EDFA-1550S-24 | ≥250 mW |
| EDFA-1550S-25 | ≥320 mW |
| EDFA-1550S-26 | ≥400 mW |
| EDFA-1550S-27 | ≥500 mW |
Specifications and variant information reflect the published catalog. Confirm the exact model, optional features and compatibility with FOT before ordering.
Typical Applications
Ideal for CATV, telecom, and long-distance fiber optic transmission systems.
