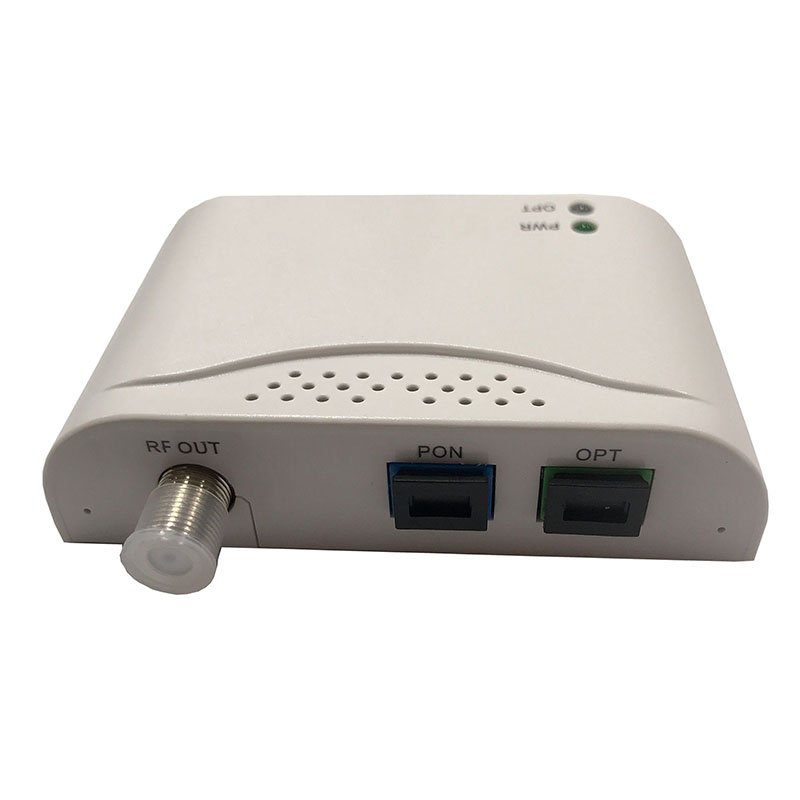

FCOR-2080WD FTTH WDM CATV Optical Receiver
Compact FTTH WDM CATV optical receiver designed for triple-play networks. Features automatic gain control (AGC) and wide optical input range, delivering stable RF output for CATV signal reception in ONU applications.
Category: CATV Optical Equipment
Key Features
- Automatic Gain Control (AGC) – maintains stable RF output across -10 to 0 dBm optical input range.
- High RF output level – ≥80 dBμV @ -10 dBm optical input power.
- Wide optical input range – supports -18 dBm to 0 dBm for flexible deployment.
- Built-in WDM – integrated 1310/1490 nm PON and 1550 nm CATV wavelength separation.
- Low power consumption – ≤2.0W with +12V DC power supply.
Technical Specifications
| Parameter | Specification |
|---|---|
| CATV Wavelength | 1550 nm |
| PON Wavelength | 1310 / 1490 nm |
| Input Optical Power | -18 to 0 dBm (AGC: -10 to 0 dBm) |
| Optical Return Loss | ≥40 dB |
| Optical Connector | SC/APC |
| Operation Bandwidth | 47–1000 MHz |
| RF Output Level | ≥80 dBμV |
| RF Connector | F Female |
| RF Return Loss | >12 dB |
| CNR | >43 dB |
| CSO | ≥55 dB |
| CTB | ≥55 dB |
| Power Supply | 12 VDC |
| Power Consumption | 2.0 W |
| Dimension (LWH) | 73 mm × 60 mm × 23 mm |
| Weight | 0.1 kg |
| Operating Temperature | -20°C to +50°C |
| Storage Temperature | -40°C to +85°C |
Specifications and variant information reflect the published catalog. Confirm the exact model, optional features and compatibility with FOT before ordering.
Typical Applications
Ideal for triple-play networks and CATV signal reception in ONU applications.
Related Products
- FCOT-2150M 7–2150MHz Mini CATV & SAT-IF Optical Transmitter
- FCOT-2600DB 47–2600MHz Broadband CATV & SAT-IF FTTH Optical Transmitter
- EDFA-1550H High Power Ytterbium Erbium Doped Fiber Amplifier
- EDFA-1550S 1550nm Standard Erbium Doped Fiber Amplifier
Related Solutions & Guides
Equipment Buyer Questions
What is FCOR-2080WD FTTH WDM CATV Optical Receiver used for?
Ideal for triple-play networks and CATV signal reception in ONU applications.
Which specifications should I check for FCOR-2080WD FTTH WDM CATV Optical Receiver?
The listed specifications include CATV Wavelength: 1550 nm; PON Wavelength: 1310 / 1490 nm; Input Optical Power: -18 to 0 dBm (AGC: -10 to 0 dBm); Optical Return Loss: ≥40 dB. Review the complete table and confirm your required configuration with FOT.
Is compatibility with my existing network guaranteed?
Compatibility depends on your existing equipment, firmware, interfaces and service configuration. Share your OLT/ONT or network equipment models with FOT for confirmation before deployment.
How can I request a quote for FCOR-2080WD FTTH WDM CATV Optical Receiver?
Email sales@fiberoptictel.com with the product name, quantity and required configuration. Ask for confirmation of pricing, availability and lead time.
