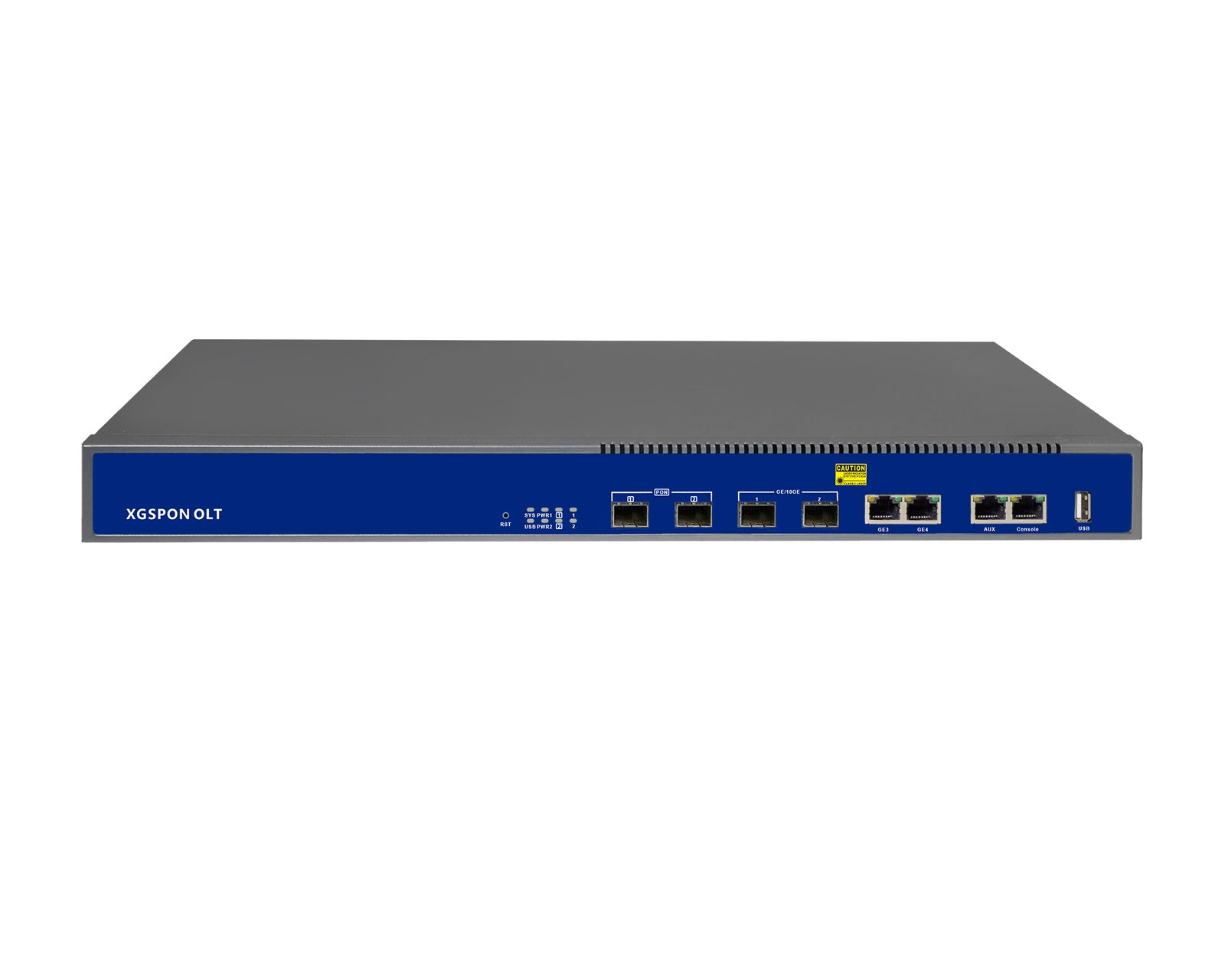

2PON Ports XG/XGS-PON OLT
2PON Ports XG/XGS-PON OLT, compliant with ITU-T G.9807 (XGS-PON), ITU-T G.987 (XG-PON), provides with 2 downlink 10G PON ports and 2 10GE/GE uplink Ethernet optical ports. Suitable for small enterprises, shops, property leasing, and other applications.
Category: xPON OLT
Key Features
- 1U 2-port 10G PON OLT – compact design with high-density 10G PON access.
- XG/XGS-PON optional – flexible PON mode selection per port.
- 10GE uplink ports – 2 * SFP+ 10GE uplink for high-speed aggregation.
- IPv4/IPv6 dual stack – supports IPv6 Ping, Telnet, and routing.
- Rich L3 features – static routing, DHCP server/relay/snooping, ACL.
- Redundant power supply – dual power design for enhanced reliability.
Technical Specifications
| Parameter | Specification |
|---|---|
| PON Standard | ITU-T G.9807 (XGS-PON), ITU-T G.987 (XG-PON) |
| PON Interface | 2 * SFP+ slots (XG-PON or XGS-PON) |
| PON Speed | XG-PON: Downstream 9.953 Gbps / Upstream 2.488 Gbps / XGS-PON: Downstream 9.953 Gbps / Upstream 9.953 Gbps |
| Transmission Distance | Up to 20 km |
| Split Ratio | 1:256 (max), 1:128 (recommended) |
| Wavelength | TX 1577 nm / RX 1270 nm |
| Uplink Ports | 2 * SFP/SFP+ (GE/10GE) + 2 * RJ45 (10/100/1000 Mbps) |
| Management | WEB, Telnet, CLI, out-band LAN port, Console |
| USB Port | 1 * USB 2.0 |
| MAC Address Table | 16K |
| VLAN Support | 4096 VLANs, port VLAN, VLAN tag/untag, VLAN translation, QinQ |
| Layer 3 Features | Static routing, 16K host routes, 1024 subnet routes, ARP proxy |
| IPv6 Features | NDP, IPv6 Ping/Telnet/routing, ACL based on IPv6, MLD v1/v2 snooping |
| Multicast | IGMP snooping, 1K L2 multicast groups, 1K L3 multicast groups |
| DHCP | DHCP server, DHCP relay, DHCP snooping, Option 82 |
| QoS | Based on port, VID, TOS, MAC address |
| Link Aggregation | Static LACP, Dynamic LACP |
| Backplane Bandwidth | 208 Gbps |
| Forwarding Rate | 124.992 Mpps |
| Power Consumption | ≤40 W |
| Power Supply | AC 100–240V, 50/60Hz or DC -48V (dual redundancy) |
| Dimension (LWH) | 442 mm * 200 mm * 43.6 mm |
| Weight | 2.485 kg |
| Operating Temperature | 0°C to +50°C |
| Operating Humidity | 5% to 90% (non-condensing) |
Specifications and variant information reflect the published catalog. Confirm the exact model, optional features and compatibility with FOT before ordering.
Typical Applications
Suitable for small enterprises, shops, property leasing, and other applications.
Related Products
Related Solutions & Guides
Equipment Buyer Questions
What is 2PON Ports XG/XGS-PON OLT used for?
Suitable for small enterprises, shops, property leasing, and other applications.
Which specifications should I check for 2PON Ports XG/XGS-PON OLT?
The listed specifications include PON Standard: ITU-T G.9807 (XGS-PON), ITU-T G.987 (XG-PON); PON Interface: 2 * SFP+ slots (XG-PON or XGS-PON); PON Speed: XG-PON: Downstream 9.953 Gbps / Upstream 2.488 Gbps / XGS-PON: Downstream 9.953 Gbps / Upstream 9.953 Gbps; Transmission Distance: Up to 20 km. Review the complete table and confirm your required configuration with FOT.
Is compatibility with my existing network guaranteed?
Compatibility depends on your existing equipment, firmware, interfaces and service configuration. Share your OLT/ONT or network equipment models with FOT for confirmation before deployment.
How can I request a quote for 2PON Ports XG/XGS-PON OLT?
Email sales@fiberoptictel.com with the product name, quantity and required configuration. Ask for confirmation of pricing, availability and lead time.
