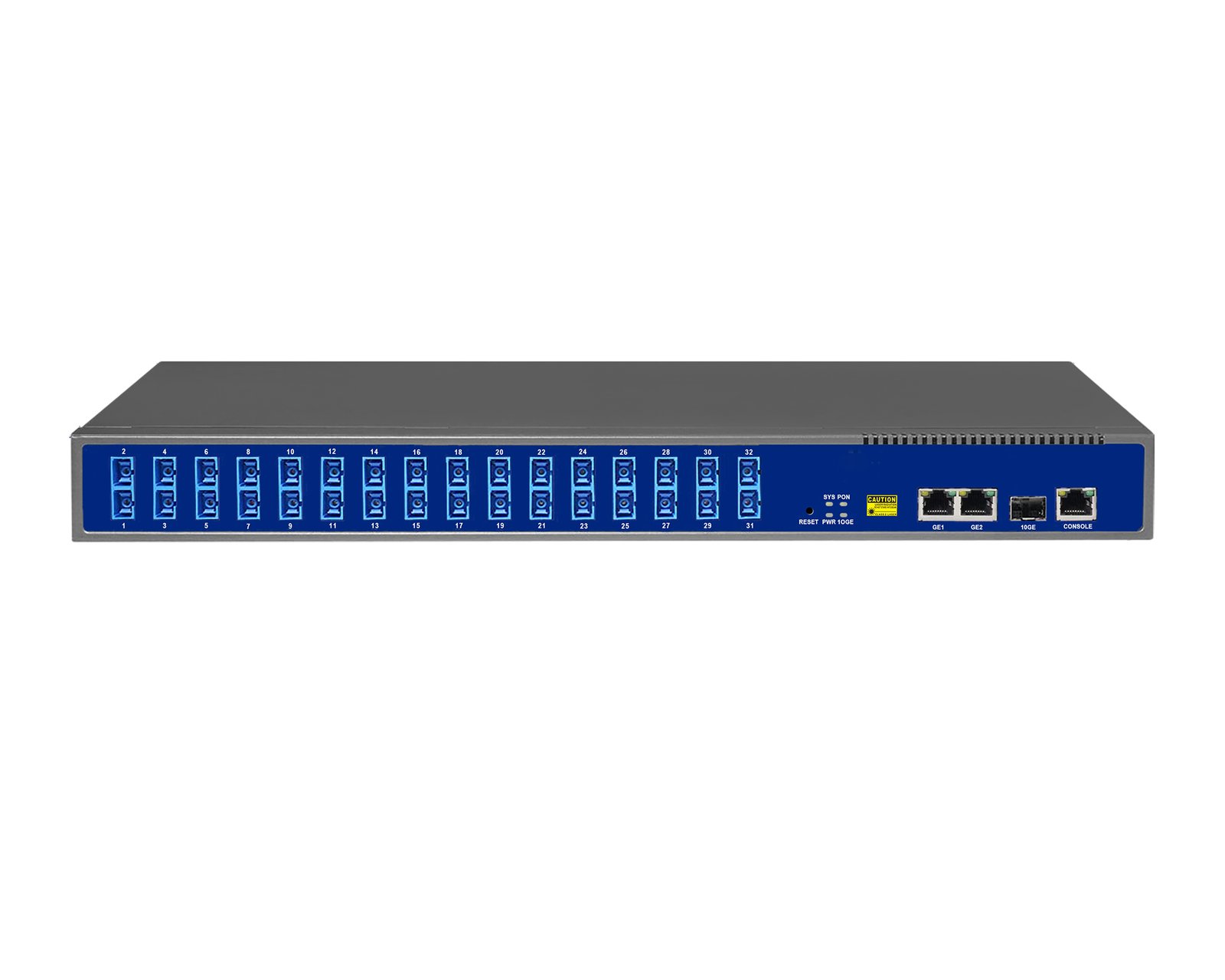

One PON Port GPON OLT with ODN
One PON Port GPON OLT with ODN is a single PON port 1U GPON OLT with 1x32 optical splitter, delivering high performance at an attractive price point. Ideal for FTTH, SOHO, and small business office deployments, this OLT combines reliable functionality with space-saving design.
Category: xPON OLT
Key Features
- Built-in 1×32 optical splitter – neat and reliable wiring.
- 10GE SFP+ uplink port – high-speed uplink connectivity.
- Class C+++ GPON SFP – supports up to 20 km transmission distance.
- Remote firmware upgrade – via web/TFTP/FTP.
- Low power consumption – ≤12W.
Technical Specifications
| Parameter | Specification |
|---|---|
| PON Interface | 32 SC/UPC Ports (Built-in ODN) / 1*Class C+++ GPON SFP |
| Transmission Distance | Up to 20 km |
| PON Bandwidth | Downstream: 2.488 Gbps / Upstream: 1.244 Gbps |
| Uplink Ports | 1 * SFP+ (10GE) + 2 * RJ45 (10/100/1000 Mbps) |
| Management | WEB / Telnet / Console |
| VLAN Support | 4096 VLANs, port VLAN, VLAN tag/untag |
| Layer 2 Features | Port isolation, storm control, rate limitation, 802.1D/802.1W |
| MAC Address Table | 1K |
| Backplane Bandwidth | 16 Gbps |
| Forwarding Rate | 23.808 Mpps |
| Power Consumption | ≤12 W |
| Power Supply | AC 100–240V, 50/60Hz or DC 12V 2A |
| Dimension | 442 mm * 173 mm * 44 mm |
| Weight | 2.41 kg |
| Operating Temperature | 0°C to +55°C |
| Operating Humidity | 5% to 85% (non-condensing) |
Specifications and variant information reflect the published catalog. Confirm the exact model, optional features and compatibility with FOT before ordering.
Typical Applications
Ideal for FTTH, SOHO, and small business office deployments.
Related Products
Related Solutions & Guides
Equipment Buyer Questions
What is One PON Port GPON OLT with ODN used for?
Ideal for FTTH, SOHO, and small business office deployments.
Which specifications should I check for One PON Port GPON OLT with ODN?
The listed specifications include PON Interface: 32 SC/UPC Ports (Built-in ODN) / 1*Class C+++ GPON SFP; Transmission Distance: Up to 20 km; PON Bandwidth: Downstream: 2.488 Gbps / Upstream: 1.244 Gbps; Uplink Ports: 1 * SFP+ (10GE) + 2 * RJ45 (10/100/1000 Mbps). Review the complete table and confirm your required configuration with FOT.
Is compatibility with my existing network guaranteed?
Compatibility depends on your existing equipment, firmware, interfaces and service configuration. Share your OLT/ONT or network equipment models with FOT for confirmation before deployment.
How can I request a quote for One PON Port GPON OLT with ODN?
Email sales@fiberoptictel.com with the product name, quantity and required configuration. Ask for confirmation of pricing, availability and lead time.
