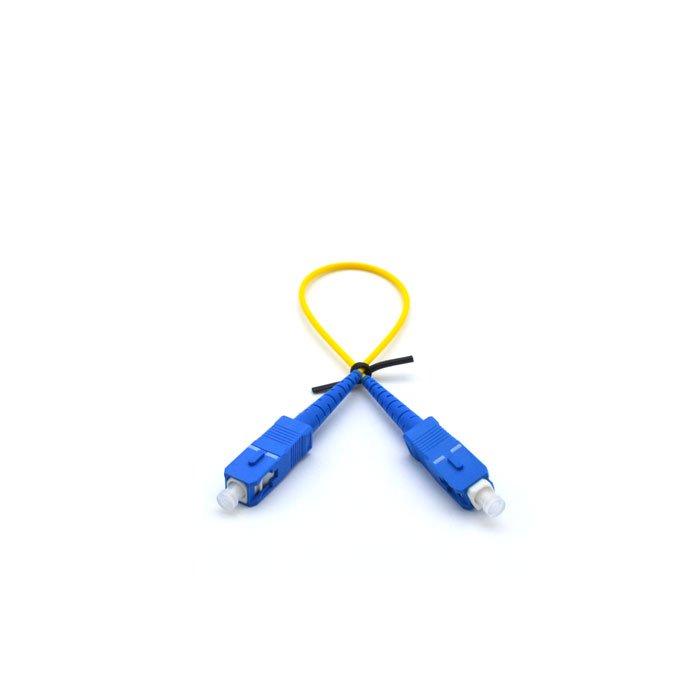

Fiber Optic Patch Cords (Jumpers)
Fiber optic patch cords (also known as jumpers or patch cables) are essential components for connecting fiber optic equipment and network elements. Available in single-mode and multi-mode, with a wide range of connector styles including FC, SC, ST, LC, MTRJ, MU, E2000, and DIN.
Category: Passive Optical Components
Key Features
- Low insertion loss – ≤0.2 dB for reliable signal transmission.
- High return loss – >50 dB for minimized signal reflection.
- Excellent repeatability – ≤0.2 dB for consistent performance.
- Good exchangeability – ≤0.2 dB for random connector mating.
- Superior environmental adaptability – withstands high/low temperature, humidity, vibration, and drop tests.
Technical Specifications
| Parameter | Specification |
|---|---|
| Insertion Loss | ≤0.2 dB |
| Return Loss | >50 dB |
| Exchangeability | ≤0.2 dB |
| Repeatability | ≤0.2 dB |
| Vibration Test | <0.10 dB (10–60 Hz, 1.5 mm amplitude) |
| Drop Test | <0.10 dB (height: 1.5 m, 8 times) |
| Tensile Strength | <0.10 dB (68.6 N, 10 min) |
| Mechanical Durability | <0.20 dB (>500 times) |
| High-Temperature Test | <0.20 dB (+85°C, 168 hours) |
| Low-Temperature Test | <0.20 dB (-40°C, 168 hours) |
| Temperature Cycling Test | <0.20 dB (-40°C to +75°C, 95% RH, 21 cycles, 168 hours) |
| Humidity Test | <0.20 dB (+25°C to +65°C, 95% RH, 168 hours) |
Specifications and variant information reflect the published catalog. Confirm the exact model, optional features and compatibility with FOT before ordering.
Typical Applications
Fiber optic communication systems, optical access networks, optical data transmission, local area networks (LAN), optical fiber sensors.
Related Products
Related Solutions & Guides
Equipment Buyer Questions
What is Fiber Optic Patch Cords (Jumpers) used for?
Fiber optic communication systems, optical access networks, optical data transmission, local area networks (LAN), optical fiber sensors.
Which specifications should I check for Fiber Optic Patch Cords (Jumpers)?
The listed specifications include Insertion Loss: ≤0.2 dB; Return Loss: >50 dB; Exchangeability: ≤0.2 dB; Repeatability: ≤0.2 dB. Review the complete table and confirm your required configuration with FOT.
Is compatibility with my existing network guaranteed?
Compatibility depends on your existing equipment, firmware, interfaces and service configuration. Share your OLT/ONT or network equipment models with FOT for confirmation before deployment.
How can I request a quote for Fiber Optic Patch Cords (Jumpers)?
Email sales@fiberoptictel.com with the product name, quantity and required configuration. Ask for confirmation of pricing, availability and lead time.
