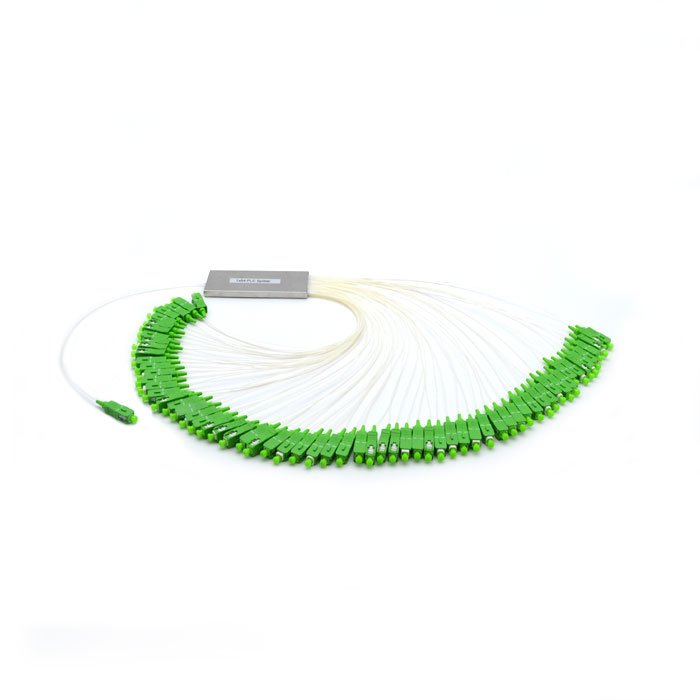

Fiber Optic PLC Splitter
PLC (Planar Lightwave Circuit) splitters are power splitters based on integrated quartz substrate technology. Available in 1×N and 2×N configurations with mini tube, ABS, insert cassette, and rack mount packaging options. Ideal for EPON, BPON, GPON, and other passive optical networks.
Category: Passive Optical Components
Key Features
- Compact size – small form factor suitable for various deployment scenarios.
- Wide operating wavelength – 1260–1650 nm coverage.
- High reliability – stable performance with excellent uniformity.
- Bi-directional operation – can combine or split optical signals.
- Multiple packaging options – mini tube, ABS, insert cassette, rack mount.
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Wavelength | 1260–1650 nm |
| Fiber Type | G652A, G657A, or customer specified |
| Configuration | 1×N, 2×N |
| Split Ratio | 1:2 to 1:64 |
PLC Splitter Performance by Configuration
| Configuration | Insertion Loss | Uniformity | PDL | Return Loss |
|---|---|---|---|---|
| 1×2 | 4.0 dB | 0.4 dB | 0.2 dB | 55 dB (P) / 50 dB (S) |
| 1×4 | 7.2 dB | 0.6 dB | 0.2 dB | 55 dB (P) / 50 dB (S) |
| 1×8 | 10.5 dB | 0.8 dB | 0.3 dB | 55 dB (P) / 50 dB (S) |
| 1×16 | 13.5 dB | 1.2 dB | 0.3 dB | 55 dB (P) / 50 dB (S) |
| 1×32 | 16.9 dB | 1.5 dB | 0.3 dB | 55 dB (P) / 50 dB (S) |
| 1×64 | 21.0 dB | 2.5 dB | 0.4 dB | 55 dB (P) / 50 dB (S) |
Specifications and variant information reflect the published catalog. Confirm the exact model, optional features and compatibility with FOT before ordering.
Typical Applications
EPON, BPON, GPON, FTTX networks, optical communication systems, CATV networks.
Related Products
- Fiber Optical Distribution Box
- Fiber Optic Patch Cords (Jumpers)
- Fiber Fast Connectors
- Fiber Optic Adapters
Related Solutions & Guides
Equipment Buyer Questions
What is Fiber Optic PLC Splitter used for?
EPON, BPON, GPON, FTTX networks, optical communication systems, CATV networks.
Which specifications should I check for Fiber Optic PLC Splitter?
The listed specifications include Operating Wavelength: 1260–1650 nm; Fiber Type: G652A, G657A, or customer specified; Configuration: 1×N, 2×N; Split Ratio: 1:2 to 1:64. Review the complete table and confirm your required configuration with FOT.
Is compatibility with my existing network guaranteed?
Compatibility depends on your existing equipment, firmware, interfaces and service configuration. Share your OLT/ONT or network equipment models with FOT for confirmation before deployment.
How can I request a quote for Fiber Optic PLC Splitter?
Email sales@fiberoptictel.com with the product name, quantity and required configuration. Ask for confirmation of pricing, availability and lead time.
