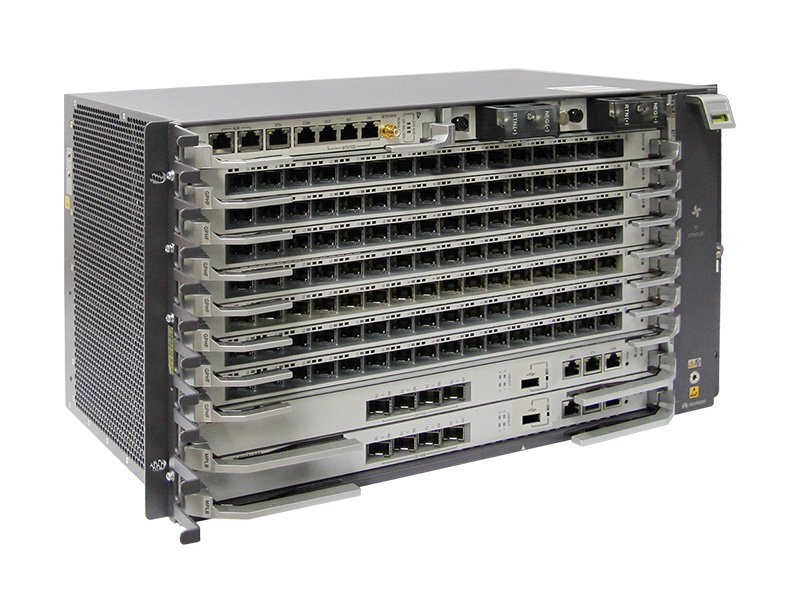

MA5800-X7 GPON OLT
MA5800-X7 is a mid-capacity OLT designed for medium-scale FTTH deployments and enterprise access networks. It supports PON/10G PON/50G PON/GE/10GE shared platform, delivering optimal 4K/8K/VR video experience, multi-service virtualization, and smooth evolution to 50G PON. It is ideal for FTTH, FTTB, FTTC, and mobile backhaul scenarios.
Category: xPON OLT · Model: MA5800-X7
Key Features
- Distributed Architecture with Control & Forwarding Separation
- Multi-Media Gigabit Aggregation
- Superior 4K/8K/VR Video Experience
- High Reliability Design and Smooth Evolution
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MA5800-X7 |
| Service Slots | 7*service board slots + 2*control board slots + 2*power board slot |
| Control and uplink board | 2*MPLA (with 4 10G ports) |
| Power board | 2*PILA DC power |
| Service board | GPON: GPHF, GPSF, XGLD, XGHD / EPON: EPHF, XELD, XEHD |
| Max GPON Ports | 112 |
| Backplane Switching Capacity | MPLA: 3.6 Tbit/s / MPLB: 7.0 Tbit/s |
| Max MAC Addresses | 262,143 |
| Working Voltage Range | -38.4V to -72V DC |
| Maximum Input Current | 40A |
| Dimension | 6U (442 mm × 268.7 mm × 263.9 mm) |
| Weight (empty chassis) | 26 kg |
| Operating Temperature | -40°C to +65°C |
| Operating Humidity | 5% RH to 95% RH (non-condensing) |
Specifications and variant information reflect the published catalog. Confirm the exact model, optional features and compatibility with FOT before ordering.
Typical Applications
Ideal for FTTH, FTTB, FTTC, and mobile backhaul scenarios.
Related Products
- One PON Port GPON OLT
- 8PON Ports XG/XGS-PON OLT
- 2PON Ports XG/XGS-PON OLT
- One PON Port GPON OLT with ODN
Related Solutions & Guides
Equipment Buyer Questions
What is MA5800-X7 GPON OLT used for?
Ideal for FTTH, FTTB, FTTC, and mobile backhaul scenarios.
Which specifications should I check for MA5800-X7 GPON OLT?
The listed specifications include Model: MA5800-X7; Service Slots: 7*service board slots + 2*control board slots + 2*power board slot; Control and uplink board: 2*MPLA (with 4 10G ports); Power board: 2*PILA DC power. Review the complete table and confirm your required configuration with FOT.
Is compatibility with my existing network guaranteed?
Compatibility depends on your existing equipment, firmware, interfaces and service configuration. Share your OLT/ONT or network equipment models with FOT for confirmation before deployment.
How can I request a quote for MA5800-X7 GPON OLT?
Email sales@fiberoptictel.com with the product name, model MA5800-X7, quantity and required configuration. Ask for confirmation of pricing, availability and lead time.
