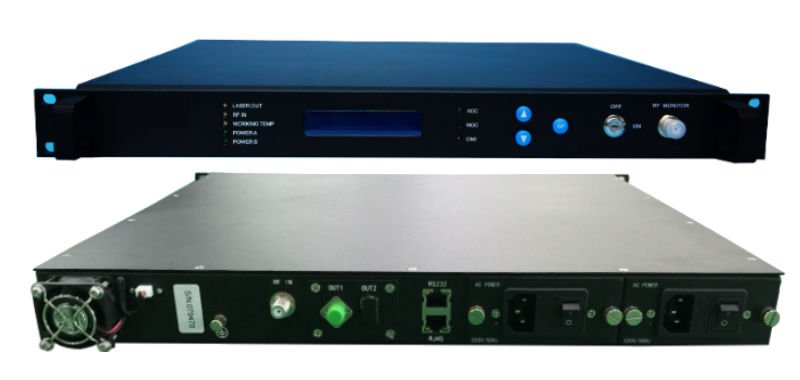

EMOT-1550S 1550nm External Modulation Optical Transmitter
1U rack-mountable 1550nm external modulation optical transmitter designed for small to medium-sized TV stations. Features adjustable SBS threshold (13/16/18 dBm) and delivers CNR ≥51.5 dB over 50 km fiber. Ideal for long-distance transmission of CATV, digital, and compressed digital signals.
Category: CATV Optical Equipment
Key Features
- External modulation technology – superior linearity for CATV signal transmission with excellent CTB/CSO performance.
- Adjustable SBS threshold – supports 13 dBm, 16 dBm, and 18 dBm output power settings for flexible deployment.
- Long-distance transmission – delivers CNR ≥51.5 dB over 50 km fiber with low signal degradation.
- Front panel LCD display – real-time monitoring of operating parameters including optical power, temperature, and alarm status.
- Dual power supply options – AC 220V or DC -48V with automatic switching for enhanced reliability.
- Network management interface – RJ45 port for remote monitoring and configuration via SNMP.
Technical Specifications
| Parameter | Specification |
|---|---|
| Wavelength | 1550 nm ± 0.5 nm |
| Optical Modulation | External modulation (LiNbO3) |
| Optical Output Power | 13 dBm, 16 dBm, 18 dBm (adjustable SBS threshold) |
| SBS Threshold | 13 dBm / 16 dBm / 18 dBm (selectable) |
| Optical Connector | FC/APC, SC/APC (optional) |
| Frequency Range | 47–862 MHz (1000 MHz optional) |
| CNR | ≥51.5 dB (@ 50 km, 0 dBm input) |
| CTB | ≤-65 dBc |
| CSO | ≤-60 dBc |
| Flatness | ±0.75 dB |
| RF Input Level | 80 ± 5 dBμV |
| RF Input Return Loss | ≥16 dB |
| RF Input Impedance | 75 Ω |
| Power Consumption | ≤35 W |
| Power Supply | AC 220V ± 10%, 50/60 Hz or DC -48V (dual power optional) |
| Network Management | RJ45 Ethernet port, SNMP v2/v3 |
| Dimension | 19" × 12" × 1.75" (482.6 mm × 304.8 mm × 44.45 mm) |
| Weight | 4.2 kg |
| Working Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
Listed Model Variants
| Model | Listed Optical Output |
|---|---|
| EMOT-1550S-1X5 | Single output × 5 dBm |
| EMOT-1550S-1X7 | Single output × 7 dBm |
| EMOT-1550S-1X9 | Single output × 9 dBm |
| EMOT-1550S-2X3 | Dual output × 3 dBm each |
| EMOT-1550S-2X5 | Dual output × 5 dBm each |
| EMOT-1550S-2X6 | Dual output × 6 dBm each |
| EMOT-1550S-2X7 | Dual output × 7 dBm each |
Specifications and variant information reflect the published catalog. Confirm the exact model, optional features and compatibility with FOT before ordering.
Typical Applications
Ideal for long-distance transmission of CATV, digital, and compressed digital signals in small to medium-sized TV stations and distribution networks.
