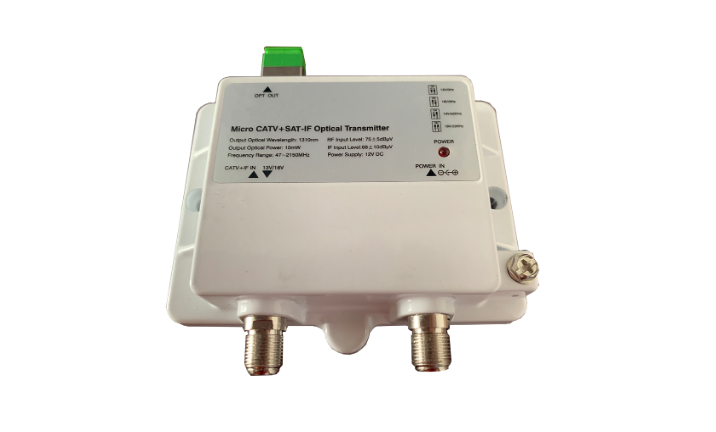

FCOT-2150M 7–2150MHz Mini CATV & SAT-IF Optical Transmitter
Compact mini optical transmitter supporting 47–2150MHz CATV and satellite IF signals over a single fiber. Features high linearity DFB laser with 1310nm/1550nm wavelength options. Ideal for FTTH, small-scale deployments, and space-constrained installations.
Category: CATV Optical Equipment
Key Features
- Broadband transmission – supports 47–2150MHz CATV and satellite IF signals over a single fiber.
- Compact size – mini design ideal for small-scale deployments and space-constrained installations.
- Low power consumption – highly efficient design with power usage under 2W.
- High performance – high linearity DFB laser ensures excellent signal quality and reliability.
- Flexible wavelength options – available in 1310nm or 1550nm to suit different network requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Optical Wavelength | 1310 nm or 1550 nm |
| Optical Output Power | 2–10 mW (3–10 dBm) |
| Optical Return Loss | ≥45 dB |
| Optical Connector | SC/APC |
| Laser Type | Cooling DFB |
| CATV Frequency Range | 47–862 MHz |
| CATV Input Level | 75 ± 5 dBm |
| CATV Flatness | ≤±0.75 dB |
| CATV Input Return Loss | >16 dB |
| CATV CNR | ≥52 dB |
| CATV CTB | ≥63 dB |
| CATV CSO | ≥60 dB |
| CATV Input Impedance | 75 Ω |
| CATV RF Port | F Imperial |
| SAT-IF Frequency Range | 950–2150 MHz |
| SAT-IF Input Level | 68 ± 10 dBm |
| SAT-IF Flatness | ≤±1.5 dB |
| Power Supply | +12V DC |
| Power Consumption | <2 W |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 60°C |
| Relative Humidity | 5% to 95% |
| Dimension (WDH) | 100 mm × 100 mm × 30 mm |
Listed Model Variants
| Model | Listed Optical Output |
|---|---|
| FCOT-2150M-15-2 | 1550 nm, ≥2 mW |
| FCOT-2150M-15-4 | 1550 nm, ≥4 mW |
| FCOT-2150M-15-6 | 1550 nm, ≥6 mW |
| FCOT-2150M-15-8 | 1550 nm, ≥8 mW |
| FCOT-2150M-15-10 | 1550 nm, ≥10 mW |
Specifications and variant information reflect the published catalog. Confirm the exact model, optional features and compatibility with FOT before ordering.
Typical Applications
Ideal for FTTH, small-scale deployments, and space-constrained installations.
Related Products
- FCOR-2080WD FTTH WDM CATV Optical Receiver
- FCOT-2600DB 47–2600MHz Broadband CATV & SAT-IF FTTH Optical Transmitter
- EDFA-1550H High Power Ytterbium Erbium Doped Fiber Amplifier
- EDFA-1550S 1550nm Standard Erbium Doped Fiber Amplifier
Related Solutions & Guides
Equipment Buyer Questions
What is FCOT-2150M 7–2150MHz Mini CATV & SAT-IF Optical Transmitter used for?
Ideal for FTTH, small-scale deployments, and space-constrained installations.
Which specifications should I check for FCOT-2150M 7–2150MHz Mini CATV & SAT-IF Optical Transmitter?
The listed specifications include Optical Wavelength: 1310 nm or 1550 nm; Optical Output Power: 2–10 mW (3–10 dBm); Optical Return Loss: ≥45 dB; Optical Connector: SC/APC. Review the complete table and confirm your required configuration with FOT.
Is compatibility with my existing network guaranteed?
Compatibility depends on your existing equipment, firmware, interfaces and service configuration. Share your OLT/ONT or network equipment models with FOT for confirmation before deployment.
How can I request a quote for FCOT-2150M 7–2150MHz Mini CATV & SAT-IF Optical Transmitter?
Email sales@fiberoptictel.com with the product name, quantity and required configuration. Ask for confirmation of pricing, availability and lead time.
